High-quality, cost-effective, and reliable pipe and vessel designs

When the deliverable is reliable pipe and vessel designs, there is no need to spend time doing something your software can do for you. AutoPIPE is an analysis and design application used to calculate piping stresses, loads, and deflections under static and dynamic load conditions. With extensive interoperability across other industry applications as well as time-saving features like the new support optimizer, AutoPIPE helps ensure quality, cost-effective designs, and a smooth workflow for engineers who use it.

Save time with an easy-to-use application

Easily create and modify pipe stress models by using the object-based OpenGL graphical user interface. You can simply point and click to insert, modify, or delete components for instant visual updates and modify parameters across a range of points with just one command. Tracking changes or making modifications can be done in a snap to help save time and eliminate otherwise cumbersome tasks.

Perform advanced analysis and design

Perform design and analysis for buried pipelines, fluid transients, wave loading, and FRP/GRP or plastic pipe and avoid piping failures and costly shutdowns by evaluating your design under extreme loading conditions like earthquakes. With AutoPIPE’s 3D hot clash detection you can eliminate errors up-front and perform ‘what-if’ analysis to quickly evaluate various design scenarios.

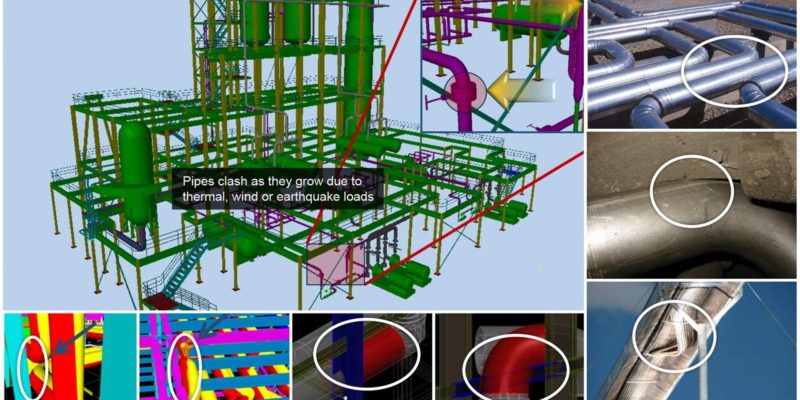

AutoPIPE_Reference structural model for pipe stress analysis

Streamline multi-discipline workflows

Integrate piping and structural analysis and design with the ability to transfer pipe support loads and import complete structures to and from other applications. AutoPIPE interoperates with applications like STAAD.Pro, SACS, OpenPlant, and CAESAR, so you can save design time and streamline the workflow when working across various teams.

AutoPIPE Pipe Support Optimizer Video Thumbnail

Optimize pipe supports

Provide the most optimized pipe support design quickly using the latest AI machine learning technology. When a piping system must be designed to withstand various stresses, it’s critical to assess loading points and support them adequately, yet keep costs to a minimum. The new support optimizer feature allows you to create thousands of design alternatives and compare them as they become available. Then make iterations until the best outcome is achieved.

Create graphical results and reports

Produce customized reports in various formats from an open-sourced, optimized SQLite database and eliminate tedious reviews with color-coded results and pop-up windows that help identify and investigate critical issues.

“Seamless software integration from AutoPIPE and STAAD contributed to a shortened product qualification process, saving 60% of the analysis and design cycle time. The software also helped to coordinate with design teams on final assembly, fabrication, and production and enabled the timely market launch of the product.”

Technical Capabilities

Modeling Dynamic Analysis Piping Codes Analysis Input and Results

Modeling

Single line, wire-frame, and solid render drawing modes
CAD style single, double, or quad view ports
Vertical axis (Y or Z) can be switched on the fly
On-screen distance calculator for accurate coordinate checks
Built-in valve actuator for more accurate valve modeling
Segment management: reverse, split, join, and re-order segments
CAD line class and line numbers
Connectivity checker to avoid model disconnects
English, metric, SI, and user-defined units
Extensive ANSI/ASME, DIN, EN, JIS, GD, GB, GOST, and GRP/FRP standard piping component and material libraries
Structural steel modeling using structural databases for 17 countries
Expansion joint modeling with tie rod assemblies
Model import from AutoPLANT, PlantSpace, OpenPlant, MicroStation, Excel, AutoCAD, Intergraph PDS, SmartPlant, Aveva PDMS, CADWORX, SolidWorks, Inventor, Plant 3D, CATIA, and PlantFLOW
Automatic stress isometric generation in DXF, DWG, or DGN formats with engineers mark-ups
PIPELINK bi-directional integration with STAAD.Pro and SACS
Model geometry data export into AutoPLANT, MicroStation, and AutoCAD
Automated ring main wizard
Automatic ASCE soil calculator

Dynamic Analysis

Time history dynamic analysis with ground motion
Mode shapes, accelerations, and natural frequencies
Harmonic load analysis
Uniform and MSRS response spectrum and shock spectra
Multiple spectrum enveloping
NRC spectra and code case N411 (PVRC) damping and spectra
NUREG.CR-1677, CR-6441, and CR-6049 benchmarks
Automatic mass discretization
Missing mass and ZPA correction

Piping Codes

ASME B31.1 support for multiple years, including B31.1, B31.4, and B31.8
European Standard Metallic Industrial Piping (multiple years) EN13480
Multiple years: B31.4, B31.8, B31.4 Offshore, B31.8 Offshore and CSA_Z662 Offshore codes
DNV OS F101 offshore code
Canadian CAN/CSA–Z662 (multiple years)
British Standard BS 806, BS 7159 (GRP piping code)
FRP ISO 14692
ASME N755 HDPE Code Case
Russian SNIP 2.05.06-85 Oil and Gas
Swedish Piping Code (SPC) Method 2
Norwegian Det Norske Veritas (DNV) and TBK 5-6
Dutch Stoomwezen D1101
Japanese KHK, MITI class 3, JSME NC1-PPC and General Fire Protection code
French RCC-M and SNCT

Analysis

ASME B31J calculations for improved SIF values
Unlimited static analysis to examine different loading scenarios, including hot modulus for any combination of 100 thermal, 30 seismic, 10 wind, and 50 dynamic load cases
Automatic generation of wind profiles per ASCE and UBC guidelines
Wave loading and buoyancy for offshore applications
Hydrotest analysis with locking spring hangers
Linear and non-linear hydrotest analysis
Fluid transient utilities for water and steam hammer plus relief valve load analysis
Automatic spring hanger sizing from 27 manufacturers
State-of-the-art nonlinear support gap, friction, yielding, and soil interaction with advanced features of seismic wave propagation, overburden and settlement loads, and stresses to ASCE, AWWA, and ASME
Thermal stratification bowing analysis
Seismic static and response spectra load generator to IBC, Euro, ASCE, Indian, Spanish, Mexican, and Chinese standards
Ec/Eh ratio applied to expansion stresses for any piping code
Integrated flange loading analysis per ASME VIII Div 1 and 2, ASME III App XI, and ANSI B16.5
Nozzle flexibility analysis per API 650 App. P, ASME Class 1, WRC 297 and Biljaard methods

Input and Results

Results saved to Microsoft Access MDB file for post-processing
Automatic or user-defined load combinations grid
Automated batch processing
Maximum intermediate stresses
Reference point for manufacturer equipment loading reports
Rotating equipment calculations to API 610, NEMA and API 617, and user-defined standards
Results can be filtered and sorted by stress, deflection, or load criteria

Modeling

Single line, wire-frame, and solid render drawing modes
CAD style single, double, or quad view ports
Vertical axis (Y or Z) can be switched on the fly
On-screen distance calculator for accurate coordinate checks
Built-in valve actuator for more accurate valve modeling
Segment management: reverse, split, join, and re-order segments
CAD line class and line numbers
Connectivity checker to avoid model disconnects
English, metric, SI, and user-defined units
Extensive ANSI/ASME, DIN, EN, JIS, GD, GB, GOST, and GRP/FRP standard piping component and material libraries
Structural steel modeling using structural databases for 17 countries
Expansion joint modeling with tie rod assemblies
Model import from AutoPLANT, PlantSpace, OpenPlant, MicroStation, Excel, AutoCAD, Intergraph PDS, SmartPlant, Aveva PDMS, CADWORX, SolidWorks, Inventor, Plant 3D, CATIA, and PlantFLOW
Automatic stress isometric generation in DXF, DWG, or DGN formats with engineers mark-ups
PIPELINK bi-directional integration with STAAD.Pro and SACS
Model geometry data export into AutoPLANT, MicroStation, and AutoCAD
Automated ring main wizard
Automatic ASCE soil calculator

Dynamic Analysis

Time history dynamic analysis with ground motion
Mode shapes, accelerations, and natural frequencies
Harmonic load analysis
Uniform and MSRS response spectrum and shock spectra
Multiple spectrum enveloping
NRC spectra and code case N411 (PVRC) damping and spectra
NUREG.CR-1677, CR-6441, and CR-6049 benchmarks
Automatic mass discretization
Missing mass and ZPA correction

Piping Codes

ASME B31.1 support for multiple years, including B31.1, B31.4, and B31.8
European Standard Metallic Industrial Piping (multiple years) EN13480
Multiple years: B31.4, B31.8, B31.4 Offshore, B31.8 Offshore and CSA_Z662 Offshore codes
DNV OS F101 offshore code
Canadian CAN/CSA–Z662 (multiple years)
British Standard BS 806, BS 7159 (GRP piping code)
FRP ISO 14692
ASME N755 HDPE Code Case
Russian SNIP 2.05.06-85 Oil and Gas
Swedish Piping Code (SPC) Method 2
Norwegian Det Norske Veritas (DNV) and TBK 5-6
Dutch Stoomwezen D1101
Japanese KHK, MITI class 3, JSME NC1-PPC and General Fire Protection code
French RCC-M and SNCT

Analysis

ASME B31J calculations for improved SIF values
Unlimited static analysis to examine different loading scenarios, including hot modulus for any combination of 100 thermal, 30 seismic, 10 wind, and 50 dynamic load cases
Automatic generation of wind profiles per ASCE and UBC guidelines
Wave loading and buoyancy for offshore applications
Hydrotest analysis with locking spring hangers
Linear and non-linear hydrotest analysis
Fluid transient utilities for water and steam hammer plus relief valve load analysis
Automatic spring hanger sizing from 27 manufacturers
State-of-the-art nonlinear support gap, friction, yielding, and soil interaction with advanced features of seismic wave propagation, overburden and settlement loads, and stresses to ASCE, AWWA, and ASME
Thermal stratification bowing analysis
Seismic static and response spectra load generator to IBC, Euro, ASCE, Indian, Spanish, Mexican, and Chinese standards
Ec/Eh ratio applied to expansion stresses for any piping code
Integrated flange loading analysis per ASME VIII Div 1 and 2, ASME III App XI, and ANSI B16.5
Nozzle flexibility analysis per API 650 App. P, ASME Class 1, WRC 297 and Biljaard methods

Input and Results

Results saved to Microsoft Access MDB file for post-processing
Automatic or user-defined load combinations grid
Automated batch processing
Maximum intermediate stresses
Reference point for manufacturer equipment loading reports
Rotating equipment calculations to API 610, NEMA and API 617, and user-defined standards
Results can be filtered and sorted by stress, deflection, or load criteria

Featured Training

Browse a variety of upcoming training and previously recorded courses taught by our in-house, industry experts.

View Options

Webinars

Explore our Pipe Stress and Vessel webinars for best practices and engage with Virtuosity and Bentley industry experts.

Watch Now

Blogs

Read our Infrastructure Insights blog to find tips and tricks and Pipe Stress and Vessel user success stories from around the world.

What is AutoPIPE? What is AutoPIPE used for?

AutoPIPE is an analysis and design application used to calculate piping stresses, loads, and deflections under static and dynamic load conditions.

What software is used for piping design and analysis?

AutoPIPE is a common pipe stress design and analysis software known for its intuitiveness. Not only is it affordable and reliable, but it offers customizable reporting, automated support structure optimization, and makes it easy to import and export various file formats such as CAESAR II files to save time and eliminate errors. AutoPIPE is offered in various versions so you can choose which version is best for you.

Find out which version is right for you.

What is the difference between AutoPIPE and CAESAR?

AutoPIPE offers machine learning support optimization saving hundreds of design hours. It also offers buried pipeline design and analysis capabilities, with 3D hot clash interference detection. Advanced interoperability allows you to import structural models from applications like SACS for offshore projects or structural analysis applications like STAAD so it’s easy to include the structural steel flexibilities in the pipe model. Structural and piping engineers work more efficiently together reducing risks and non-conformances.

AutoPIPE includes support for many international design codes including ASME B31 J, as well as ASME III Nuclear codes for class 1, 2, and 3 piping. (Available in AutoPIPE Nuclear sold by Bentley directly.)

What is AutoPIPE compatible with?

AutoPIPE has full interoperability between OpenPlant, STAAD, SACS, or third party products like CAESAR, SmartPlant, PDMS, or PDS. This allows the pipe design to be automatically imported into the pipe stress analysis program through a PXF file, PCF file, or similar. Advanced mapping ensures piping geometry, pipe properties, material, component class, support data and more are imported correctly. This workflow allows the piping to be modeled just once, increasing efficiency and eliminating manual errors.

What regional codes does AutoPIPE support?

Over 30 international design codes are supported including multiple years of ASME III, B31.1, B31.3, B31.4, B31.8, EN13480, CSA-Z662, ISO14692, DNV F101, ASME B31 J. AutoPIPE is one of the few pipestress analysis programs that adheres to the strictest international quality standards, including ISO 9001, NQA-1, 10CFR50 and approved by NIAC, NUPIC since 1986.

How much does AutoPIPE cost?

AutoPIPE costs $3,677 USD and AutoPIPE Advanced costs $7,965 USD. Prices vary per region. While there are various types of licensing available a common choice is the 12-month practitioner license offered through Virtuosity, Bentley’s eCommerce store, and it comes in the form of a Virtuoso Subscription which means you get both the software AND training, expert services, and custom mentoring.

System Requirements

Processor

Intel Pentium IV or higher

Operating System

Windows 7 Professional (32 or 64 bit)
Windows 8 Professional (32 or 64 bit)
Windows 10 Professional (32 or 64 bit)

Memory

512 MB recommended. Additional memory potentially improves performance, particularly when working with larger models.

Hard Disk

500 MB free disk space

Video Graphics Card

Any industry-standard video card that supports OpenGL 3D graphics
